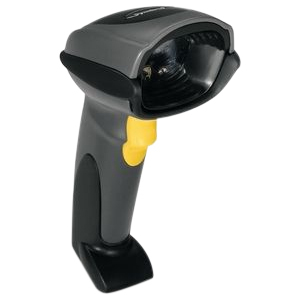

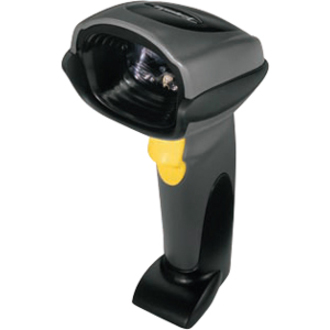

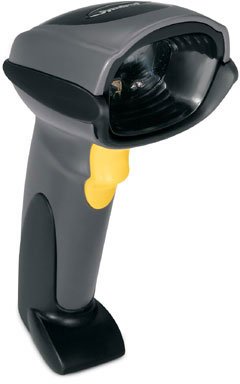

Symbol DS6708 – Barcode Scanner – 2D

Part Number: DS6708-SR20007NSR
Model: DS6708

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
2D
Scanner Type
CCD, Imager

Product Description:

  SCANNER ONLY, 2D Imager, Foot Stand. Cables and accessories sold separately. Color: Black.

Symbol DS6708 Barcode Scanner Model Overview

The handheld DS6708 combines a 1D and 2D barcode scanner, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. The DS6708 reduces capital and operating expenses by eliminating the need to purchase separate devices to read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.
Symbol DS6708-SR20007NSR Barcode Scanner Overview

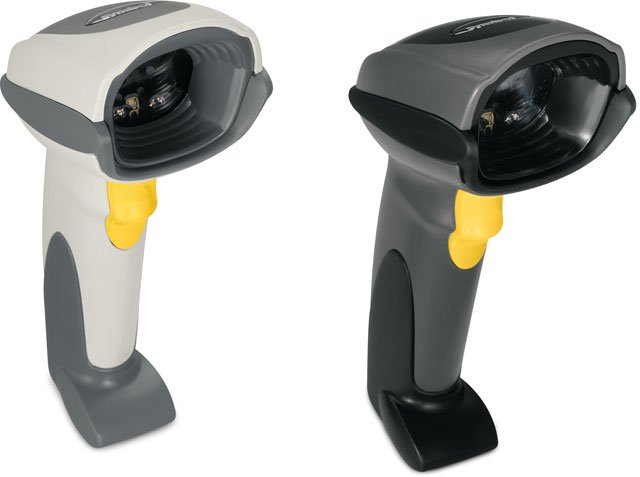

The versatile DS6700 Series from Symbol Technologies delivers the functionality of a 1D and 2D bar code scanner, digital camera and document scanner in a single device. Designed to meet a wide variety of business needs across a variety of industries, the DS6700 enhances employee productivity and streamlines business processes in retail, health care, government, manufacturing and more by combining an onboard 1.3 mega pixel camera with high performance scanning features and superior digital imaging technology.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1-D:

  • UPC/EAN And With Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Tri-optic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Codell
  • IATA
  • Bookland EAN
  • Code 32

PDF417 (And Variants):

  • PDF417
  • microPDF417 And Composite Codes

Postal:

  • U.S. Postnet And Planet
  • U.K
  • Japan
  • Australian
  • Dutch

2-D:

  • MaxiCode
  • DataMatrix (ECC 200)
  • QR Code
Image Sensor Type:
Imager
Depth of Field:
  • 1.1" - 6.5"@5mil - Code 39
  • 0.5" - 9.7"@13mil - 100% UPC/EAN
  • 0.5" - 15.2"@20mil - Code 39
  • 0.9" - 7"@10mil - PDF417
  • 1.1" - 7.5"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • USB
  • Serial
Power Description
Power Supply Included:
Yes
Physical Characteristics
Color:
Black
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • Symbol DS6708 Handheld Bar Code Reader
  • Desktop Holder
  • Wall-mount Holder
  • Power Supply
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
